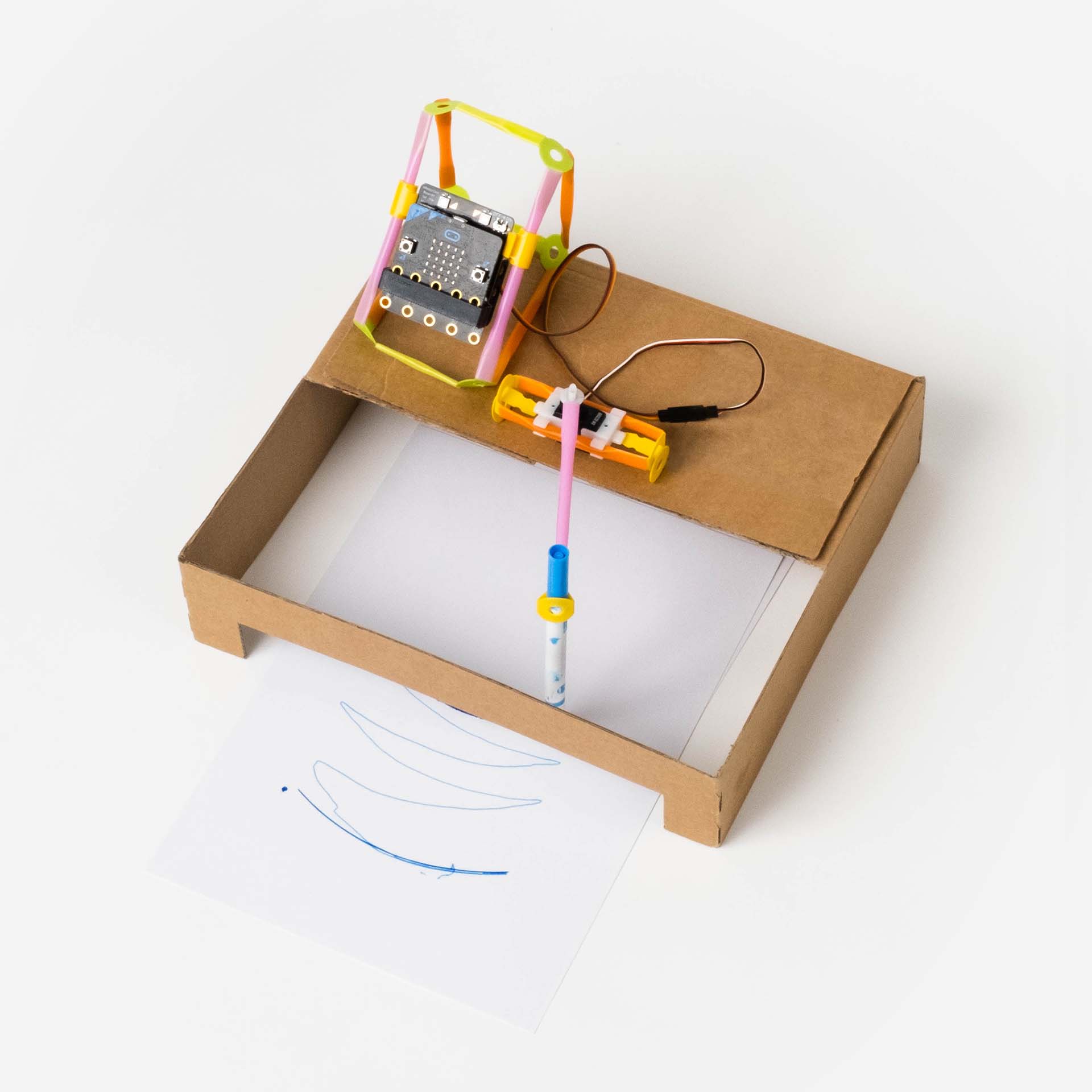

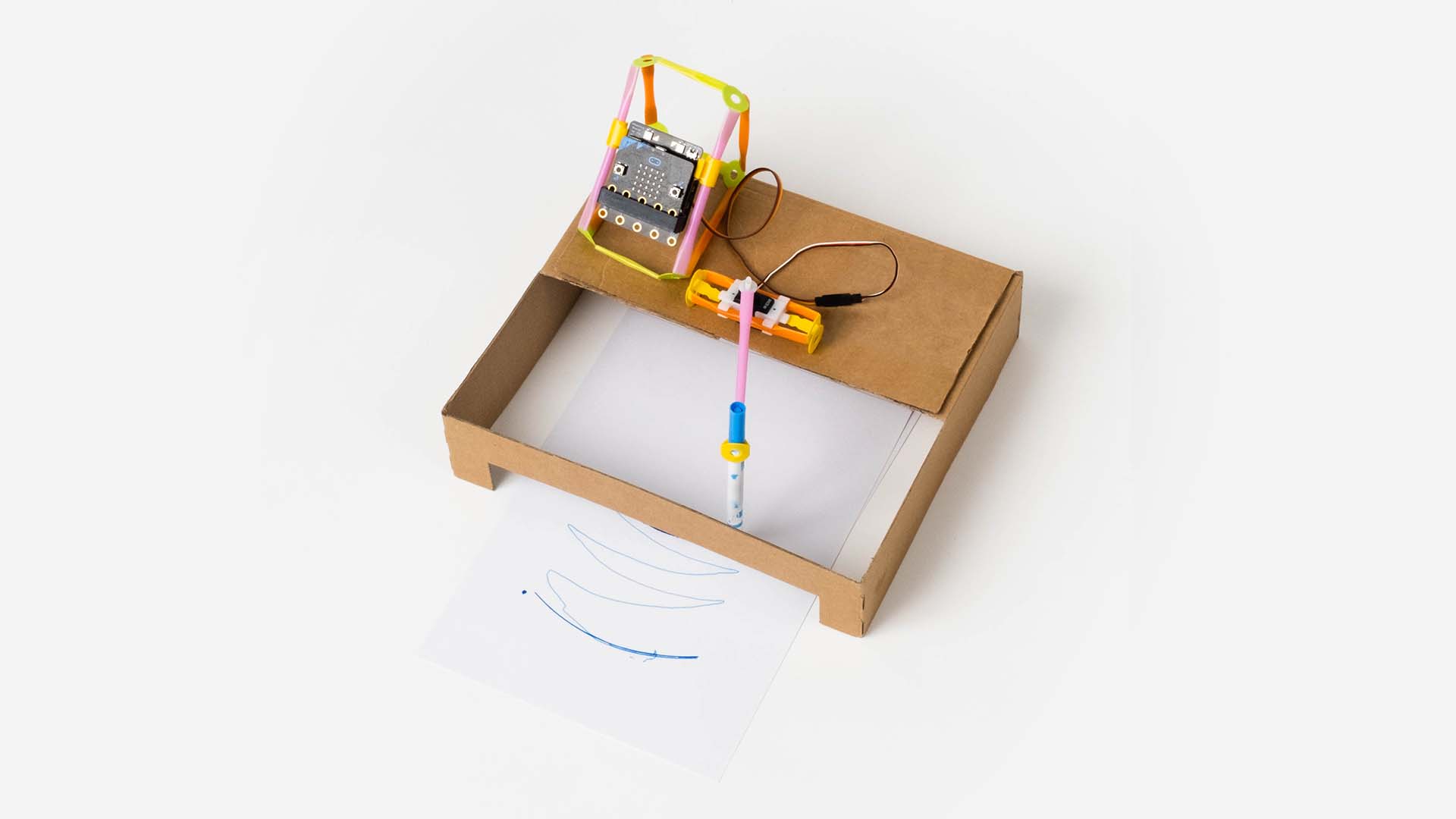

Program the shape of the servo’s movement using a tool to hold a marker for sketching waves on paper. When the servo moves from one position to the other, the movement will start slow and then speed up. Experiment with the outcome of the drawing by adding or removing transitions, adjusting the position and the duration of seconds until satisfied with the patterns made in the drawing.

Please note this resource was tailored for US schools and may require adjustments to suit UK schools.

🇬🇧 Teacher Notes

Overview and Objectives

Materials

Preparation

Build beams

With the beams create a prism structure

Assemble the micro:bit, clip, extension cable, and servo motor

Create a servo motor holder

Clip the Robotics board and servo motor on the structures

Measure and cut pieces from a cardboard box

Measure and mark 2 holes then poke holes

Place connectors through the holes then click connectors on the back side to secure

Click the servo motor holder to the drawing machine

Connect to computer using USB cable

Start a new project on Makecode

Add Strawbees extension

Pair the micro:bit

Turn on the Robotics board

Center the servo motor

Make the drawing arm then attach to servo motor

Slide the marker into the drawing arm

Program the marker to move sideways

Place a piece of paper under and run your drawing machine pulling the paper slowly to test

Construct a Drawing Machine (micro:bit)
